CIvfFileReader Class Reference

#include <ivffile/IvfFileReader.h>

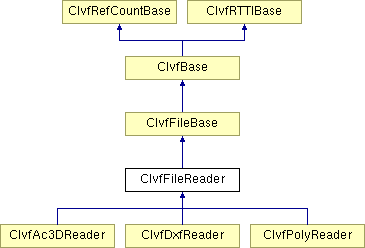

Inheritance diagram for CIvfFileReader:

List of all members.

Public Member Functions
	CIvfFileReader ()
virtual	~CIvfFileReader ()
	IvfClassInfo ("CIvfFileReader", CIvfFileBase)
void	getSize (double *min, double *max)
void	setReverseFace (bool flag)
bool	getReverseFace ()
void	setScaling (double scaleFactor)
double	getScaling ()
void	getMidpoint (double &x, double &y, double &z)
virtual void	read ()
Protected Member Functions
void	getLine (std::istream &in, std::string &row)
bool	findPos (const char *keyword, std::string &row, int &pos)
bool	find (const char *keyword, std::string &row)
void	getLine (std::string &row)
void	maxMinCalc (double x, double y, double z)
void	resetSize ()

---

Detailed Description

Base class for a file reader

This class implements basic functions for parsing a text based 3d geometry file. It also serves as a base class for file readers. File readers should override the read() method and assign imported geometry using the setShape() method in the CIvfFileBase class.

Author:

Jonas Lindemann

Definition at line 46 of file IvfFileReader.h.

---

Constructor & Destructor Documentation

CIvfFileReader::CIvfFileReader (   )

CIvfFileReader constructor

virtual CIvfFileReader::~CIvfFileReader (   )  [virtual]

CIvfFileReader destructor

---

Member Function Documentation

void CIvfFileReader::getMidpoint (  double &  x, double &  y, double &  z )

Return midpoint of loaded model

bool CIvfFileReader::getReverseFace (   )

Get handling of face orientation (Not completely impl.)

double CIvfFileReader::getScaling (   )

Get scaling of loaded model (Not completely impl.)

void CIvfFileReader::getSize (  double *  min, double *  max )

Returns min/max size of read geometry For this method to work, any derived file loaders must use the maxMinCalc() and resetSize() when reading the file. (Not completely implemented yet...)

virtual void CIvfFileReader::read (   )  [virtual]

Virtual method for reading the model This method is implemented in derived file loaders. Reimplemented in CIvfAc3DReader, CIvfDxfReader, and CIvfPolyReader.

void CIvfFileReader::setReverseFace (  bool  flag  )

Set handling of face orientation (Not completely impl.)

void CIvfFileReader::setScaling (  double  scaleFactor  )

Set scaling of loaded model (Not completely impl.)

---

The documentation for this class was generated from the following file:

• ivffile/IvfFileReader.h

---
