CIvfInteractionHandler Class Reference

#include <ivfwidget/IvfInteractionHandler.h>

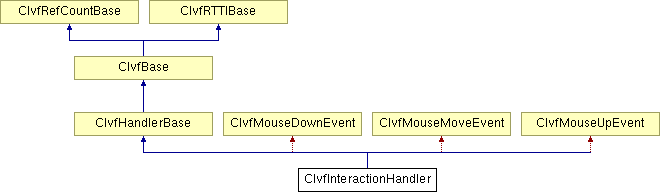

Inheritance diagram for CIvfInteractionHandler:

List of all members.

Public Member Functions
	CIvfInteractionHandler (CIvfWidgetBase *widget, CIvfScene *scene)
virtual	~CIvfInteractionHandler ()
	IvfClassInfo ("CIvfInteractionHandler", CIvfHandlerBase)
void	setControlDragEvent (CIvfControlDragEvent *event)
void	setControlEnterEvent (CIvfControlEnterEvent *event)
void	setControlLeaveEvent (CIvfControlLeaveEvent *event)
void	setControlOverEvent (CIvfControlOverEvent *event)
void	setControlClickEvent (CIvfControlClickEvent *event)
void	setControlUpEvent (CIvfControlUpEvent *event)
void	setControlDownEvent (CIvfControlDownEvent *event)
void	setShapeDragEvent (CIvfShapeDragEvent *event)
void	setShapeEnterEvent (CIvfShapeEnterEvent *event)
void	setShapeOverEvent (CIvfShapeOverEvent *event)
void	setShapeLeaveEvent (CIvfShapeLeaveEvent *event)
void	setShapeClickEvent (CIvfShapeClickEvent *event)
void	setShapeUpEvent (CIvfShapeUpEvent *event)
void	setShapeDownEvent (CIvfShapeDownEvent *event)
virtual void	doMouseUp (int x, int y)
virtual void	doMouseMove (int x, int y)
virtual void	doMouseDown (int x, int y)
virtual void	onMouseMove (int x, int y)
virtual void	onMouseUp (int x, int y)
virtual void	onMouseDown (int x, int y)

---

Detailed Description

3D user interface interaction handler

This handler implements 3D user interface interaction for CIvfWidgetBased classes using the ivf3dui library. The handler supports two kinds of interaction, CIvfShape based interaction and interaction with CIvfControl derived controls. CIvfControl classes are specialised 3D user interface controls, which support visual responses to user interaction.

Examples:

manip.cpp.

Definition at line 247 of file IvfInteractionHandler.h.

---

Constructor & Destructor Documentation

CIvfInteractionHandler::CIvfInteractionHandler (  CIvfWidgetBase *  widget, CIvfScene *  scene )

Class constructor Parameters: widget  reference to CIvfWidgetBase derived class. scene  refercne to a CIvfScene derived class containing the user interface elements, both CIvfShape and CIvfControl derived.

virtual CIvfInteractionHandler::~CIvfInteractionHandler (   )  [virtual]

Class destructor

---

Member Function Documentation

virtual void CIvfInteractionHandler::onMouseDown (  int  x, int  y )  [virtual]

onMouseUp method The onMouse method is called when the mouse button is released. Reimplemented from CIvfMouseDownEvent.

virtual void CIvfInteractionHandler::onMouseMove (  int  x, int  y )  [virtual]

onMouseMove method The onMouseMove method is called whenever the mouse is moved in the window. Reimplemented from CIvfMouseMoveEvent.

virtual void CIvfInteractionHandler::onMouseUp (  int  x, int  y )  [virtual]

onMouseMove method The onMouseMove method is called whenever the mouse is moved in the window. Reimplemented from CIvfMouseUpEvent.

void CIvfInteractionHandler::setControlClickEvent (  CIvfControlClickEvent *  event  )

Assign control click event to handler

void CIvfInteractionHandler::setControlDownEvent (  CIvfControlDownEvent *  event  )

Assign control down event to handler

void CIvfInteractionHandler::setControlDragEvent (  CIvfControlDragEvent *  event  )

Assign control drag event to handler

void CIvfInteractionHandler::setControlEnterEvent (  CIvfControlEnterEvent *  event  )

Assign control enter event to handler

void CIvfInteractionHandler::setControlLeaveEvent (  CIvfControlLeaveEvent *  event  )

Assign control leave event to handler

void CIvfInteractionHandler::setControlOverEvent (  CIvfControlOverEvent *  event  )

Assign control over event to handler

void CIvfInteractionHandler::setControlUpEvent (  CIvfControlUpEvent *  event  )

Assign control up event to handler

void CIvfInteractionHandler::setShapeClickEvent (  CIvfShapeClickEvent *  event  )

Assign shape click event to handler

void CIvfInteractionHandler::setShapeDownEvent (  CIvfShapeDownEvent *  event  )

Assign shape down event to handler

void CIvfInteractionHandler::setShapeDragEvent (  CIvfShapeDragEvent *  event  )

Assign shape drag event to handler

void CIvfInteractionHandler::setShapeEnterEvent (  CIvfShapeEnterEvent *  event  )

Assign shape enter event to handler

void CIvfInteractionHandler::setShapeLeaveEvent (  CIvfShapeLeaveEvent *  event  )

Assign shape leave event to handler

void CIvfInteractionHandler::setShapeOverEvent (  CIvfShapeOverEvent *  event  )

Assign shape over event to handler

void CIvfInteractionHandler::setShapeUpEvent (  CIvfShapeUpEvent *  event  )

Assign shape up event to handler

---

The documentation for this class was generated from the following file:

• ivfwidget/IvfInteractionHandler.h

---
