CIvfMouseViewHandler Class Reference

#include <ivfwidget/IvfMouseViewHandler.h>

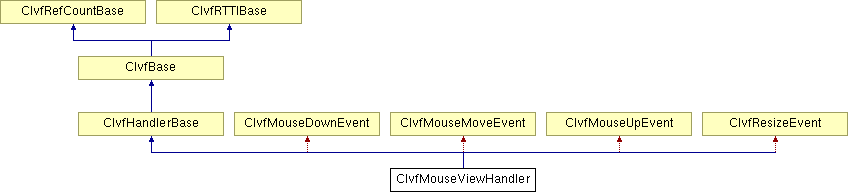

Inheritance diagram for CIvfMouseViewHandler:

List of all members.

Public Types
enum	TKeyHandling { KH_NORMAL, KH_MIDDLE_BUTTON }
Public Member Functions
	CIvfMouseViewHandler (CIvfWidgetBase *widget, CIvfCamera *camera)
virtual	~CIvfMouseViewHandler ()
	IvfClassInfo ("CIvfMouseViewHandler", CIvfBase)
void	setPanScalefactor (double factor)
double	getPanScalefactor ()
void	setZoomScalefactor (double factor)
double	getZoomScalefactor ()
void	setAutoScale (bool flag)
bool	getAutoScale ()
void	setAutoScaleBias (double bias)
double	getAutoScaleBias ()
void	setKeyHandling (TKeyHandling keyHandling)
TKeyHandling	getKeyHandling ()
virtual void	doResize (int width, int height)
virtual void	doMouseDown (int x, int y)
virtual void	doMouseMove (int x, int y)
virtual void	doMouseUp (int x, int y)
virtual void	onMouseDown (int x, int y)
virtual void	onMouseMove (int x, int y)
virtual void	onMouseUp (int x, int y)
virtual void	onResize (int width, int height)

---

Detailed Description

Mouse view handler

This class implements basic mouse view handling. Default mode is view rotation using the left mouse button. Panning is done using the left mouse button Zooming is done using the right mouse button and the [Shift] key.

Examples:

handlers.cpp, and manip.cpp.

Definition at line 45 of file IvfMouseViewHandler.h.

---

Constructor & Destructor Documentation

CIvfMouseViewHandler::CIvfMouseViewHandler (  CIvfWidgetBase *  widget, CIvfCamera *  camera )

Class constructor Parameters: widget  reference to CIvfWidgetBase class. camera  reference to a CIvfCamera to be manipulated.

virtual CIvfMouseViewHandler::~CIvfMouseViewHandler (   )  [virtual]

Class destructor

---

Member Function Documentation

bool CIvfMouseViewHandler::getAutoScale (   )

Return auto scale state

double CIvfMouseViewHandler::getAutoScaleBias (   )

Return auto scale bias factor

TKeyHandling CIvfMouseViewHandler::getKeyHandling (   )

Return key handling mode

double CIvfMouseViewHandler::getPanScalefactor (   )

Return panning scale factor

double CIvfMouseViewHandler::getZoomScalefactor (   )

Return zoom scale factor

virtual void CIvfMouseViewHandler::onMouseDown (  int  x, int  y )  [virtual]

onMouseUp method The onMouse method is called when the mouse button is released. Reimplemented from CIvfMouseDownEvent.

virtual void CIvfMouseViewHandler::onMouseMove (  int  x, int  y )  [virtual]

onMouseMove method The onMouseMove method is called whenever the mouse is moved in the window. Reimplemented from CIvfMouseMoveEvent.

virtual void CIvfMouseViewHandler::onMouseUp (  int  x, int  y )  [virtual]

onMouseMove method The onMouseMove method is called whenever the mouse is moved in the window. Reimplemented from CIvfMouseUpEvent.

virtual void CIvfMouseViewHandler::onResize (  int  width, int  height )  [virtual]

onResize method The onResize method occurs when the widget has changed size. Typically code for initialising the viewport and perspective transformation goes here. Reimplemented from CIvfResizeEvent.

void CIvfMouseViewHandler::setAutoScale (  bool  flag  )

Enable/disable auto scaling The different scale factor are calculated as follows: pan_scale_factor = auto_scale_bias*eye_target_distance/screen_width; zoom_scale_factor = auto_scale_bias*eye_target_distance/screen_width; rotate_factor = 4.0/screen_width;

void CIvfMouseViewHandler::setAutoScaleBias (  double  bias  )

Set autoscale bias factor A factor to modify the calculated autoscale.

void CIvfMouseViewHandler::setKeyHandling (  TKeyHandling  keyHandling  )

Set type of key handling. Parameters: keyHandling  Default set to CIvfMouseViewHandler::KH_NORMAL. this mode uses left/right buttons and the [Shift] key. CIvfMouseViewHandler::KH_MIDDLE_BUTTON uses the middle button (wheel) to handle zooming

void CIvfMouseViewHandler::setPanScalefactor (  double  factor  )

Set panning scale factor Panning is calculated by: View movement X = mouse_delta_x * factor View movement Y = mouse_delta_y * factor

void CIvfMouseViewHandler::setZoomScalefactor (  double  factor  )

Set zoom scale factor Zoom is calculated by: Forward/backward movement = mouse_delta * factor

---

The documentation for this class was generated from the following file:

• ivfwidget/IvfMouseViewHandler.h

---
