CIvfSelectionHandler Class Reference

#include <ivfwidget/IvfSelectionHandler.h>

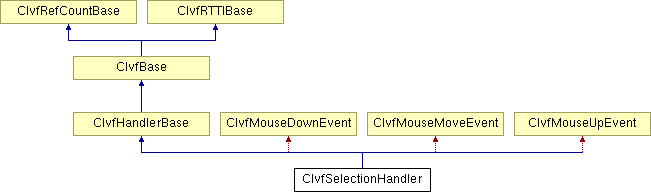

Inheritance diagram for CIvfSelectionHandler:

List of all members.

Public Member Functions
	CIvfSelectionHandler (CIvfWidgetBase *widget, CIvfScene *scene)
	IvfClassInfo ("CIvfSelectionHandler", CIvfHandlerBase)
void	setSingleSelectionEvent (CIvfSingleSelectionEvent *event)
void	setMultipleSelectionEvent (CIvfMultipleSelectionEvent *event)
void	setHighlightEvent (CIvfHighlightEvent *event)
virtual void	doMouseUp (int x, int y)
virtual void	doMouseMove (int x, int y)
virtual void	doMouseDown (int x, int y)
virtual void	onMouseMove (int x, int y)
virtual void	onMouseUp (int x, int y)
virtual void	onMouseDown (int x, int y)

---

Detailed Description

Selection handler

This class automatically handles OpenGL buffer selection. It can fire 3 kinds of events: onSelect which can be assigned to handle a simple selection of a single CIvfShape instance. onMultipleSelect which handles a selection with all objects located under the cursor. onHighlight for implementing highlighting of object under the cursor.

Examples:

handlers.cpp.

Definition at line 87 of file IvfSelectionHandler.h.

---

Constructor & Destructor Documentation

CIvfSelectionHandler::CIvfSelectionHandler (  CIvfWidgetBase *  widget, CIvfScene *  scene )

Class constructor Parameters: widget  Reference to a CIvfWidgetBase instance. scene  Reference to a CIvfScene instance containing the complete scene graph setup.

---

Member Function Documentation

virtual void CIvfSelectionHandler::onMouseDown (  int  x, int  y )  [virtual]

onMouseUp method The onMouse method is called when the mouse button is released. Reimplemented from CIvfMouseDownEvent.

virtual void CIvfSelectionHandler::onMouseMove (  int  x, int  y )  [virtual]

onMouseMove method The onMouseMove method is called whenever the mouse is moved in the window. Reimplemented from CIvfMouseMoveEvent.

virtual void CIvfSelectionHandler::onMouseUp (  int  x, int  y )  [virtual]

onMouseMove method The onMouseMove method is called whenever the mouse is moved in the window. Reimplemented from CIvfMouseUpEvent.

void CIvfSelectionHandler::setHighlightEvent (  CIvfHighlightEvent *  event  )

Assign highlight event

void CIvfSelectionHandler::setMultipleSelectionEvent (  CIvfMultipleSelectionEvent *  event  )

Assign multiple selection event

void CIvfSelectionHandler::setSingleSelectionEvent (  CIvfSingleSelectionEvent *  event  )

Assign single selection event

---

The documentation for this class was generated from the following file:

• ivfwidget/IvfSelectionHandler.h

---
