CIvfSimpleLineSet Class Reference

#include <ivf/IvfSimpleLineSet.h>

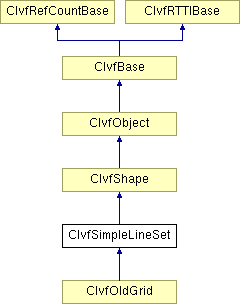

Inheritance diagram for CIvfSimpleLineSet:

List of all members.

Public Member Functions
	CIvfSimpleLineSet ()
virtual	~CIvfSimpleLineSet ()
	IvfClassInfo ("CIvfSimpleLineSet", CIvfShape)
void	setColorSize (int n)
void	setColor (int n, double red, double green, double blue)
void	setCoordSize (int n)
void	setCoord (int n, double x, double y, double z)
void	setLineSize (int n)
void	setLineIndex (int n, int idx)
Protected Member Functions
virtual void	createGeometry ()

---

Detailed Description

Line set shape class (obsolete)

CIvfSimpleLineSet implements a OpenGL line strip.

Author:

Jonas Lindemann

Definition at line 38 of file IvfSimpleLineSet.h.

---

Constructor & Destructor Documentation

CIvfSimpleLineSet::CIvfSimpleLineSet (   )

CIvfSimpleLineSet constructor

virtual CIvfSimpleLineSet::~CIvfSimpleLineSet (   )  [virtual]

CIvfSimpleLineSet destructor

---

Member Function Documentation

virtual void CIvfSimpleLineSet::createGeometry (   )  [protected, virtual]

Forces an object recalculation. Reimplemented from CIvfShape.

void CIvfSimpleLineSet::setColor (  int  n, double  red, double  green, double  blue )

Set color colors can be specified at each coordinate. Parameters: n  Color index red  Red color component green  Green color component blue  Blue color component

void CIvfSimpleLineSet::setColorSize (  int  n  )

Set size of color list

void CIvfSimpleLineSet::setCoord (  int  n, double  x, double  y, double  z )

Set coordinate Set a coordinate in coordinate list Parameters: n  Coordinate index (0 to getCoordSize()-1) x  X coordinate y  Y coordinate z  Z coordinate

void CIvfSimpleLineSet::setCoordSize (  int  n  )

Set size of coordinate list

void CIvfSimpleLineSet::setLineIndex (  int  n, int  idx )

Set line index Sets an index in the line index list. Individual lines are separated by placing -1 in the index list. The index list must end with -1. Parameters: n  Index position idx  index of coordinate

void CIvfSimpleLineSet::setLineSize (  int  n  )

Set size of line index list

---

The documentation for this class was generated from the following file:

• ivf/IvfSimpleLineSet.h

---
