CIvfWorkspaceWidget Class Reference

#include <ivfwidget/IvfWorkspaceWidget.h>

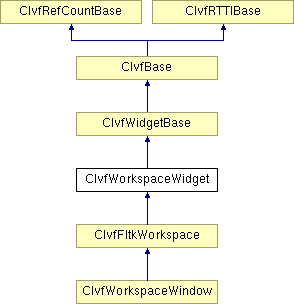

Inheritance diagram for CIvfWorkspaceWidget:

List of all members.

Public Types
enum	TEditMode {   EM_VIEW, EM_INTERACT, EM_CREATE_POINT, EM_CREATE_LINE,   EM_CREATE_POLY }
Public Member Functions
	CIvfWorkspaceWidget ()
virtual	~CIvfWorkspaceWidget ()
	IvfClassInfo ("CIvfWorkspaceWidget", CIvfWidgetBase)
void	addChild (CIvfShape *shape)
void	setEditMode (TEditMode mode)
TEditMode	getEditMode ()
CIvfWorkspace *	getWorkspace ()
CIvfCamera *	getCamera ()
bool	isShapeOverEnabled ()
void	disableShapeOver ()
void	enableShapeOver ()
virtual void	doInit (int width, int height)
virtual void	doResize (int width, int height)
virtual void	doRender ()
virtual void	doDestroy ()
virtual void	doKeyboard (int key, int x, int y)
virtual void	doMouseDown (int x, int y)
virtual void	doMouseMove (int x, int y)
virtual void	doMouseUp (int x, int y)
virtual void	onCursor (double x, double y, double z)
virtual void	onShapeDown (CIvfShape *shape)
virtual void	onShapeClick (CIvfShape *shape)
virtual void	onShapeUp (CIvfShape *shape)
virtual void	onShapeOver (CIvfShape *shape)
virtual void	onShapeLeave (CIvfShape *shape)
virtual void	onShapeDrag (CIvfShape *shape)
virtual void	onControlOver (CIvfUIInteractiveBase *uiControl)
virtual void	onControlLeave (CIvfUIInteractiveBase *uiControl)
virtual void	onControlDrag (CIvfUIInteractiveBase *uiControl)
virtual void	onControlUp (CIvfUIInteractiveBase *uiControl)
virtual void	onControlClick (CIvfUIInteractiveBase *uiControl)
virtual void	onControlDown (CIvfUIInteractiveBase *uiControl)

---

Detailed Description

Workspace widget class

This class implements a widget with workspace functionality. A 3d cursor is also implemented and construction planes using the CIvfWorkspace class.

NOTE. Consider using event handlers instead of this class.

Definition at line 54 of file IvfWorkspaceWidget.h.

---

Constructor & Destructor Documentation

CIvfWorkspaceWidget::CIvfWorkspaceWidget (   )

CIvfWorkspace constructor

virtual CIvfWorkspaceWidget::~CIvfWorkspaceWidget (   )  [virtual]

CIvfWorkspace destructor

---

Member Function Documentation

void CIvfWorkspaceWidget::addChild (  CIvfShape *  shape  )

Adds a child to the workspace This is really just a convinience class. If more functionality is wanted use the getWorkspace() method to retrieved the CIvfWorkspace object.

virtual void CIvfWorkspaceWidget::doDestroy (   )  [virtual]

Called by the doDraw() method Reimplemented from CIvfWidgetBase.

virtual void CIvfWorkspaceWidget::doInit (  int  width, int  height )  [virtual]

Called by doResize() Reimplemented from CIvfWidgetBase.

virtual void CIvfWorkspaceWidget::doKeyboard (  int  key, int  x, int  y )  [virtual]

Keyboard event handling (called from widget) Derived widget should call this method when a key on the keyboard is pressed. Reimplemented from CIvfWidgetBase.

virtual void CIvfWorkspaceWidget::doMouseDown (  int  x, int  y )  [virtual]

MouseDown event handling (called from widget) Derived widget should call this method when any of the mouse buttons is pressed. Reimplemented from CIvfWidgetBase. Reimplemented in CIvfWorkspaceWindow.

virtual void CIvfWorkspaceWidget::doMouseMove (  int  x, int  y )  [virtual]

MouseMove event handling (called from widget) Derived widget should call this method when the mouse is moved. Reimplemented from CIvfWidgetBase.

virtual void CIvfWorkspaceWidget::doMouseUp (  int  x, int  y )  [virtual]

MouseUp event handling (called from widget) Derived widget should call this method when any of the mouse buttons is released. Reimplemented from CIvfWidgetBase. Reimplemented in CIvfWorkspaceWindow.

virtual void CIvfWorkspaceWidget::doRender (   )  [virtual]

Called by doDraw() Reimplemented from CIvfWidgetBase.

virtual void CIvfWorkspaceWidget::doResize (  int  width, int  height )  [virtual]

Resize event handling (called from widget) Derived widget should call this method when widget is resized. Reimplemented from CIvfWidgetBase.

CIvfCamera* CIvfWorkspaceWidget::getCamera (   )

Return current camera

TEditMode CIvfWorkspaceWidget::getEditMode (   )

Return the current edit mode

CIvfWorkspace* CIvfWorkspaceWidget::getWorkspace (   )

Return CIvfWorkspace instance

virtual void CIvfWorkspaceWidget::onCursor (  double  x, double  y, double  z )  [virtual]

3D cursor event method This method should be overridden in derived classes to receive 3d cursor movement updates.

void CIvfWorkspaceWidget::setEditMode (  TEditMode  mode  )

Sets the edit mode Parameters: mode  three modes are defined in this class EM_VIEW for viewing the workspace, EM_SELECT for selecting objects in the workspace and EM_CREATE for creating objects.

---

The documentation for this class was generated from the following file:

• ivfwidget/IvfWorkspaceWidget.h

---
