CIvfComposite Class Reference

#include <ivf/IvfComposite.h>

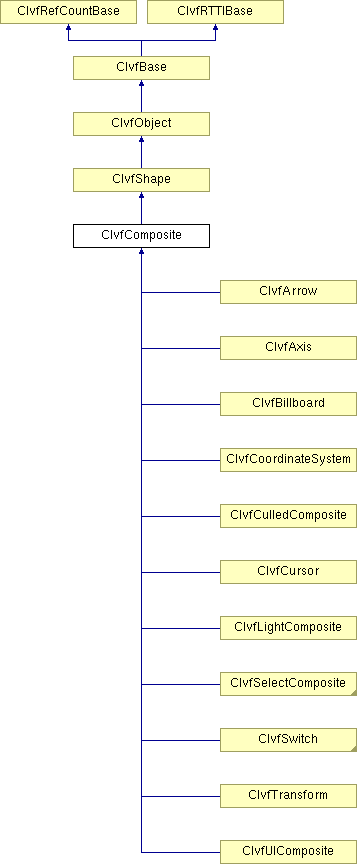

Inheritance diagram for CIvfComposite:

List of all members.

Public Member Functions
	CIvfComposite ()
virtual	~CIvfComposite ()
	IvfClassInfo ("CIvfComposite", CIvfShape)
virtual void	refresh ()
void	setUseReference (bool flag)
void	setRenderInterval (int interval)
void	setHighlightChildren (THighlightState state)
void	setHighlight (THighlightState state)
void	setHighlightComposite (THighlightState state)
void	setSelectChildren (TSelectState state)
void	refreshChildren ()
void	deleteAll ()
virtual CIvfShape *	removeChild (int index)
virtual CIvfShape *	removeShape (CIvfShape *removeShape)
virtual void	addChild (CIvfShape *shape)
virtual void	deleteChild (int index)
CIvfShape *	getChild (int index)
void	clear ()
int	getSize ()
void	updateBoundingSphere ()
CIvfShape *	findShape (const char *name)
Protected Member Functions
void	compositeRemove (CIvfComposite *composite, CIvfShape *deleteChild)
virtual void	createGeometry ()

---

Detailed Description

Composite shape class.

CIvfComposite implements an shape consisting of multiple child objects. Example:

 void CExampleWindow::onInit(int width, int heigth)
 {
     .
     .

     m_scene = new CIvfComposite();

     CIvfSphere* sphere = new CIvfSphere();
     sphere->setPosition(3.0, 0.0, 0.0);
     CIvfCube* cube = new CIvfCube();
     cube->setPosition(-3.0, 0.0, 0.0);

     m_scene->addChild(sphere);
     m_scene->addChild(cube);

     .
     .
     .
 }

 .
 .
 .
 void CExampleWindow::onRender()
 {
     .
     .

     m_scene->render();

     .
     .
 }
 *

Author:

Jonas Lindemann

Examples:

ac3dreader.cpp, actionctl.cpp, advgeom.cpp, controllers.cpp, culling.cpp, extrusion.cpp, lighting.cpp, lod.cpp, placement.cpp, robot.cpp, selection.cpp, and textures.cpp.

Definition at line 77 of file IvfComposite.h.

---

Constructor & Destructor Documentation

CIvfComposite::CIvfComposite (   )

CIvfComposite constructor.

virtual CIvfComposite::~CIvfComposite (   )  [virtual]

CIvfComposite destructor.

---

Member Function Documentation

virtual void CIvfComposite::addChild (  CIvfShape *  shape  )  [virtual]

Add child Adds a CIvfShape object to the composite object. Parameters: shape  CIvfShape object to be added. Reimplemented in CIvfCulledComposite, CIvfSelectComposite, and CIvfUIComposite.

void CIvfComposite::clear (   )

Clear composite object Removes all object references without deleting objects. If object reference counting is used all objects are dereferenced before being removed.

virtual void CIvfComposite::createGeometry (   )  [protected, virtual]

Forces an object recalculation. Reimplemented from CIvfShape. Reimplemented in CIvfBillboard, CIvfCulledComposite, CIvfCursor, CIvfLightComposite, CIvfOldScene, CIvfSelectComposite, and CIvfSwitch.

void CIvfComposite::deleteAll (   )

Deletes all child objects Deletes all child objects if they are unreferenced.

virtual void CIvfComposite::deleteChild (  int  index  )  [virtual]

Delete child Deletes child at index. To be deleted the child object must be unreferenced. Parameters: index  Index of child object to be deleted. Reimplemented in CIvfSelectComposite.

CIvfShape* CIvfComposite::findShape (  const char *  name  )

Finds a named shape This method recursively searches the composite for a shape with a given name. This name is assigned using the setName() method. This function is often used in conjunction with the AC3D file reader which assigns names to each shape.

CIvfShape* CIvfComposite::getChild (  int  index  )

Return child Returns a reference to the child at a given position. Parameters: index  Index of child to be returned (zero based) Returns: Reference to a CIvfShape object. If invalid index NULL is returned.

int CIvfComposite::getSize (   )

Returns the number of objects in the composite object.

virtual void CIvfComposite::refresh (   )  [virtual]

Force object refresh Reimplemented from CIvfShape.

void CIvfComposite::refreshChildren (   )

Refreshes all children

virtual CIvfShape* CIvfComposite::removeChild (  int  index  )  [virtual]

Removes child Removes specified child at index dereferences it and returns a reference. Parameters: index  Index of child to be removed (zero based) Returns: Reference to removed object. Reimplemented in CIvfSelectComposite.

virtual CIvfShape* CIvfComposite::removeShape (  CIvfShape *  removeShape  )  [virtual]

Removes child shape Remove specified CIvfShape instance, dereferences it and returns a reference. Parameters: removeShape  Reference of object to remove Returns: Reference to removed object. Returns NULL if object was not found. Reimplemented in CIvfSelectComposite.

void CIvfComposite::setHighlight (  THighlightState  state  )

Set the highlight state of the child objects. Loops through the child objects and calls their setHighlight() methods. Parameters: state  HS_ON highlights all child objects. HS_OFF removes highlight from child objects. Reimplemented in CIvfUIComposite.

void CIvfComposite::setHighlightChildren (  THighlightState  state  )

Set the highlight state of the child objects. Loops through the child objects and calls their setHighlight() methods. Parameters: state  HS_ON highlights all child objects. HS_OFF removes highlight from child objects.

void CIvfComposite::setRenderInterval (  int  interval  )

Set rendering interval Parameters: interval  - Renders every interval object in the composite

void CIvfComposite::setSelectChildren (  TSelectState  state  )

Set the select state of the child objects. Loops through the child objects and class their setSelect() methods. Parameters: state  IVF_SELECT_ON selectes all child objects. IVF_SELECT_OFF deselects all child objects.

void CIvfComposite::setUseReference (  bool  flag  )

Determines if objects should be referenced. If set to true child object reference counting is to be used. If a child object is not referenced when it has been dereferenced by CIvfComposite it is deleted. If this property is set to false CIvfComposite does not reference its child objects.

void CIvfComposite::updateBoundingSphere (   )  [virtual]

Updates bounding sphere Upates the radius of the assigned bounding sphere, if any. Reimplemented from CIvfObject.

---

The documentation for this class was generated from the following file:

• ivf/IvfComposite.h

---
