CIvfCursor Class Reference

#include <ivf/IvfCursor.h>

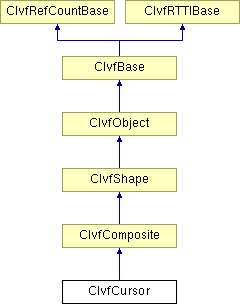

Inheritance diagram for CIvfCursor:

List of all members.

Public Types
enum	TCursorType { CT_LINE_CURSOR, CT_SOLID_CURSOR }
Public Member Functions
	CIvfCursor ()
virtual	~CIvfCursor ()
	IvfClassInfo ("CIvfCursor", CIvfComposite)
void	setSize (double size)
void	setCursorType (TCursorType type)
int	getCursorType ()
Protected Member Functions
virtual void	createGeometry ()

---

Detailed Description

Cursor shape class

CIvfCursor implements a cursor shape. The shape consists of three brick shapes i creating a three dimensional cross.

Author:

Jonas Lindemann

Definition at line 41 of file IvfCursor.h.

---

Constructor & Destructor Documentation

CIvfCursor::CIvfCursor (   )

CIvfCursor constructor

virtual CIvfCursor::~CIvfCursor (   )  [virtual]

CIvfCursor destructor

---

Member Function Documentation

virtual void CIvfCursor::createGeometry (   )  [protected, virtual]

Forces an object recalculation. Reimplemented from CIvfComposite.

int CIvfCursor::getCursorType (   )

Return cursor type

void CIvfCursor::setCursorType (  TCursorType  type  )

Set cursor type The cursor can be represented by lines or as solid shapes. Parameters: type  CT_LINE_CURSOR cursor made of lines. CT_SOLID_CURSOR (default).

void CIvfCursor::setSize (  double  size  )

Set cursor size The size set the length of the individual brick shapes. The thickness of the brick shapes are set to 5 % of the length.

---

The documentation for this class was generated from the following file:

• ivf/IvfCursor.h

---
