CIvfPlane Class Reference

#include <ivfmath/IvfPlane.h>

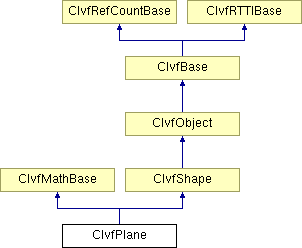

Inheritance diagram for CIvfPlane:

List of all members.

Public Member Functions
	CIvfPlane ()
virtual	~CIvfPlane ()
void	setNormal (double vx, double vy, double vz)
void	getNormal (double &vx, double &vy, double &vz)
void	normalFromVectors (double *v1, double *v2)
void	setDistance (double d)
double	getDistance ()
void	distanceFromPoint (double x, double y, double z)
bool	isSphereInFront (double x, double y, double z, double radius)
bool	isInFront (double x, double y, double z)
void	intersect (double x0, double y0, double z0, double vx, double vy, double vz, double &x, double &y, double &z)

---

Detailed Description

Geometric plane class

Handles operation on a geometric plane. The class is used to determine visibility of objects when culling the scene.

Author:

Jonas Lindemann

Definition at line 30 of file IvfPlane.h.

---

Constructor & Destructor Documentation

CIvfPlane::CIvfPlane (   )

CIvfPlane constructor

virtual CIvfPlane::~CIvfPlane (   )  [virtual]

CIvfPlane destructor

---

Member Function Documentation

void CIvfPlane::distanceFromPoint (  double  x, double  y, double  z )

Calculate plane distance from given point

double CIvfPlane::getDistance (   )

Return plane distance

void CIvfPlane::getNormal (  double &  vx, double &  vy, double &  vz )

Return plane normal

void CIvfPlane::intersect (  double  x0, double  y0, double  z0, double  vx, double  vy, double  vz, double &  x, double &  y, double &  z )

Calculate plane intersection Parameters: x0,y0,z0  starting point vx,vy,vz  intersecting vector x,y,z  intersection point

bool CIvfPlane::isInFront (  double  x, double  y, double  z )

Returns true if the given point is in fron of the plane

bool CIvfPlane::isSphereInFront (  double  x, double  y, double  z, double  radius )

Returns true if the given sphere is in front of the plane

void CIvfPlane::normalFromVectors (  double *  v1, double *  v2 )

Determine plane from vectors v1 and v2

void CIvfPlane::setDistance (  double  d  )

Set plane distance

void CIvfPlane::setNormal (  double  vx, double  vy, double  vz )

Set plane normal

---

The documentation for this class was generated from the following files:

• ivf/IvfPlane.h
• ivfmath/IvfPlane.h

---
