CIvfShapePlacementHandler Class Reference

#include <ivfwidget/IvfShapePlacementHandler.h>

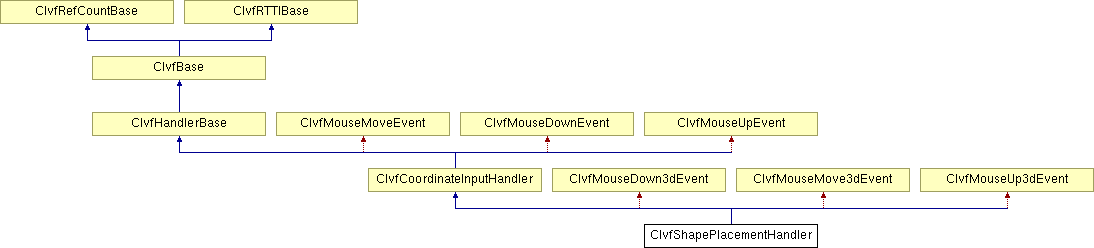

Inheritance diagram for CIvfShapePlacementHandler:

List of all members.

Public Types
enum	TInputMethod { IM_TWO_CLICK, IM_CLICK_MODIFIER }
enum	TOperatingMode { OM_CREATE_SHAPE, OM_MOVE_SHAPE, OM_COPY_SHAPE }
Public Member Functions
void	reset ()
	CIvfShapePlacementHandler (CIvfWidgetBase *widget, CIvfCamera *camera, CIvfScene *scene, CIvfComposite *composite)
	IvfClassInfo ("CIvfShapePlacementHandler", CIvfCoordinateInputHandler)
void	setShapeRepresentation (CIvfShape *shape)
void	setInputMethod (TInputMethod method)
TInputMethod	getInputMethod ()
CIvfNodeCursor *	getCursor ()
void	setCreateShapeEvent (CIvfCreateShapeEvent *event)
void	setMoveSelectionEvent (CIvfMoveSelectionEvent *event)
void	setCursorUpdateEvent (CIvfCursorUpdateEvent *event)
void	setFinishMoveEvent (CIvfFinishMoveEvent *event)
void	setFinishCopyEvent (CIvfFinishCopyEvent *event)
void	setCopyShapeEvent (CIvfCopyShapeEvent *event)
void	setMoveShape (CIvfShape *shape)
TOperatingMode	getOperatingMode ()
void	setOperatingMode (TOperatingMode mode)
void	initiateMove (CIvfVec3d &vec)
void	initiateMove (double x, double y, double z)
void	setShapeSelection (CIvfShapeSelection *shapeSelection)
bool	isMoving ()
void	finalizeMove ()
virtual void	doLockXZ (bool flag)
virtual void	doDeactivate ()
virtual void	doActivate ()
virtual void	onMouseDown3d (double x, double y, double z)
virtual void	onMouseMove3d (double x, double y, double z)
virtual void	onMouseUp3d (double x, double y, double z)

---

Detailed Description

Experimental shape placement handler

Not yet supported....

Definition at line 77 of file IvfShapePlacementHandler.h.

---

Member Function Documentation

virtual void CIvfShapePlacementHandler::onMouseDown3d (  double  x, double  y, double  z )  [virtual]

onMouseDown3d method This method is called when the mouse is pressed, Parameters: x  position of 3d cursor. y  position of 3d cursor. z  position of 3d cursor. Reimplemented from CIvfMouseDown3dEvent.

virtual void CIvfShapePlacementHandler::onMouseMove3d (  double  x, double  y, double  z )  [virtual]

onMouseMove3d method This method is called when the mouse is moved, Parameters: x  position of 3d cursor. y  position of 3d cursor. z  position of 3d cursor. Reimplemented from CIvfMouseMove3dEvent.

virtual void CIvfShapePlacementHandler::onMouseUp3d (  double  x, double  y, double  z )  [virtual]

onMouseUp3d method This method is called when the mouse is released, Parameters: x  position of 3d cursor. y  position of 3d cursor. z  position of 3d cursor. Reimplemented from CIvfMouseUp3dEvent.

---

The documentation for this class was generated from the following file:

• ivfwidget/IvfShapePlacementHandler.h

---
