CIvfCoordinateSystem Class Reference

#include <ivf/IvfCoordinateSystem.h>

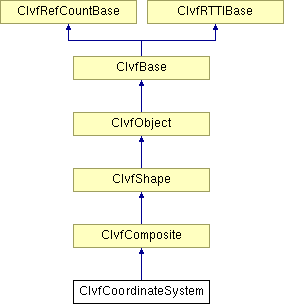

Inheritance diagram for CIvfCoordinateSystem:

List of all members.

Public Member Functions
CIvfGrid *	getGrid ()
	CIvfCoordinateSystem ()
virtual	~CIvfCoordinateSystem ()
	IvfClassInfo ("CIvfCoordinateSystem", CIvfComposite)
void	setAxisState (TObjectState state)
void	setGridState (TObjectState state)
void	setWorkspace (double size)
void	setDrawSubDivision (bool flag)
void	setAxisType (int type)
void	transformWorld (CIvfPoint3d *point)
void	transform (CIvfPoint3d *point)
void	transformWorld (double sx, double sy, double sz, double &wx, double &wy, double &wz)
void	transform (double wx, double wy, double wz, double &sx, double &sy, double &sz)
void	snap (double &x, double &y, double &z)
void	setSnapUnit (double unit)
double	getSnapUnit ()
void	alignShape (CIvfShape *shape)
void	intersect (double x0, double y0, double z0, double i, double j, double k, double &x, double &y, double &z)
void	setTranslation (double tx, double ty, double tz)
void	getTranslation (double &tx, double &ty, double &tz)
void	setRotation (double vx, double vy, double vz, double theta)
void	getRotation (double &vx, double &vy, double &vz, double &theta)
CIvfAxis *	getAxisShape ()
void	setTempYTranslation (double value)
Protected Member Functions
void	calcMatrix ()

---

Detailed Description

Coordinate system interaction/shape class

CIvfCoordinateSystem implements an intelligent drawing aid int the form of a grid with an attached coordinatesystem.

This class will become OBSOLETE.

See also:

CIvfConstructionPlane,

CIvfWorkplace and

CIvfUcs3d.

Author:

Jonas Lindemann

Definition at line 47 of file IvfCoordinateSystem.h.

---

Constructor & Destructor Documentation

CIvfCoordinateSystem::CIvfCoordinateSystem (   )

CIvfCoordinateSystem constructor

virtual CIvfCoordinateSystem::~CIvfCoordinateSystem (   )  [virtual]

CIvfCoordinateSystem destructor

---

Member Function Documentation

void CIvfCoordinateSystem::alignShape (  CIvfShape *  shape  )

Align shape with local coordinate system

CIvfAxis* CIvfCoordinateSystem::getAxisShape (   )

Returns axis shape

void CIvfCoordinateSystem::getRotation (  double &  vx, double &  vy, double &  vz, double &  theta )

Return coordinate system rotation

double CIvfCoordinateSystem::getSnapUnit (   )

Return snap unit

void CIvfCoordinateSystem::getTranslation (  double &  tx, double &  ty, double &  tz )

Return coordinate system translation

void CIvfCoordinateSystem::intersect (  double  x0, double  y0, double  z0, double  i, double  j, double  k, double &  x, double &  y, double &  z )

Determine plane intersection

void CIvfCoordinateSystem::setAxisState (  TObjectState  state  )

Set the state of the internal axis shape

void CIvfCoordinateSystem::setAxisType (  int  type  )

Set axis type. See CIvfAxis

void CIvfCoordinateSystem::setDrawSubDivision (  bool  flag  )

Subdivision drawing flag If set to true, grid subdivisions will be drawn.

void CIvfCoordinateSystem::setGridState (  TObjectState  state  )

Set the state of the internal grid shape

void CIvfCoordinateSystem::setRotation (  double  vx, double  vy, double  vz, double  theta )

Set coordinate system rotation

void CIvfCoordinateSystem::setSnapUnit (  double  unit  )

Set snap unit

void CIvfCoordinateSystem::setTranslation (  double  tx, double  ty, double  tz )

Set coordinate system translation

void CIvfCoordinateSystem::setWorkspace (  double  size  )

Set workspace size The workspace determines the size of the visible grid.

void CIvfCoordinateSystem::snap (  double &  x, double &  y, double &  z )

Snap (x, y, z) to grid

void CIvfCoordinateSystem::transform (  double  wx, double  wy, double  wz, double &  sx, double &  sy, double &  sz )

Transform (wx, wy, wz) to local coordinate system

void CIvfCoordinateSystem::transform (  CIvfPoint3d *  point  )

Transform point to local coordinate system

void CIvfCoordinateSystem::transformWorld (  double  sx, double  sy, double  sz, double &  wx, double &  wy, double &  wz )

Transform (sx, sy, sz) to world coordinate system

void CIvfCoordinateSystem::transformWorld (  CIvfPoint3d *  point  )

Transform point to world coordinate system

---

The documentation for this class was generated from the following file:

• ivf/IvfCoordinateSystem.h

---
